Fujitsu fi-800R (40ppm, 4500ppd, A4, USB)
Liên hệ

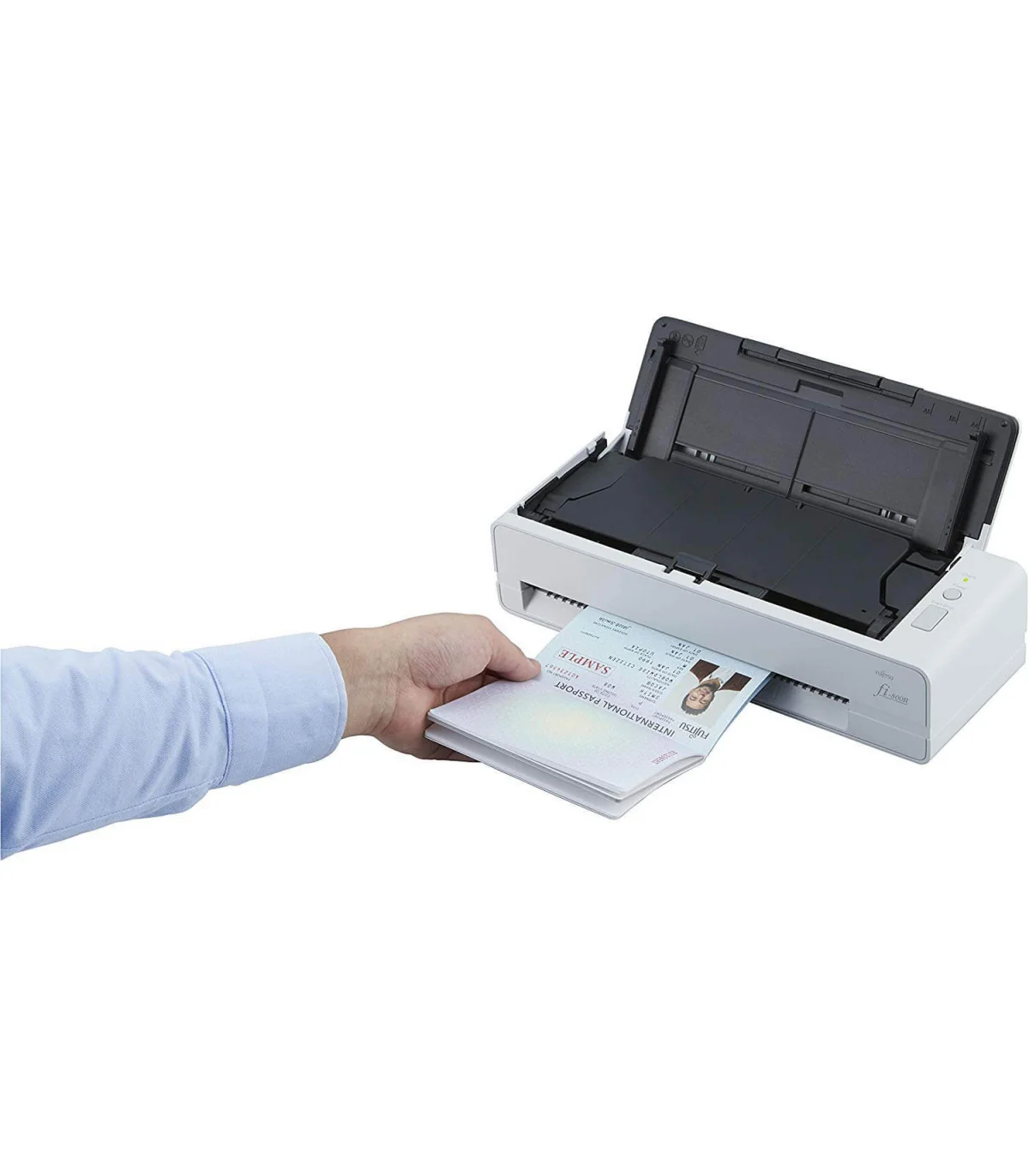

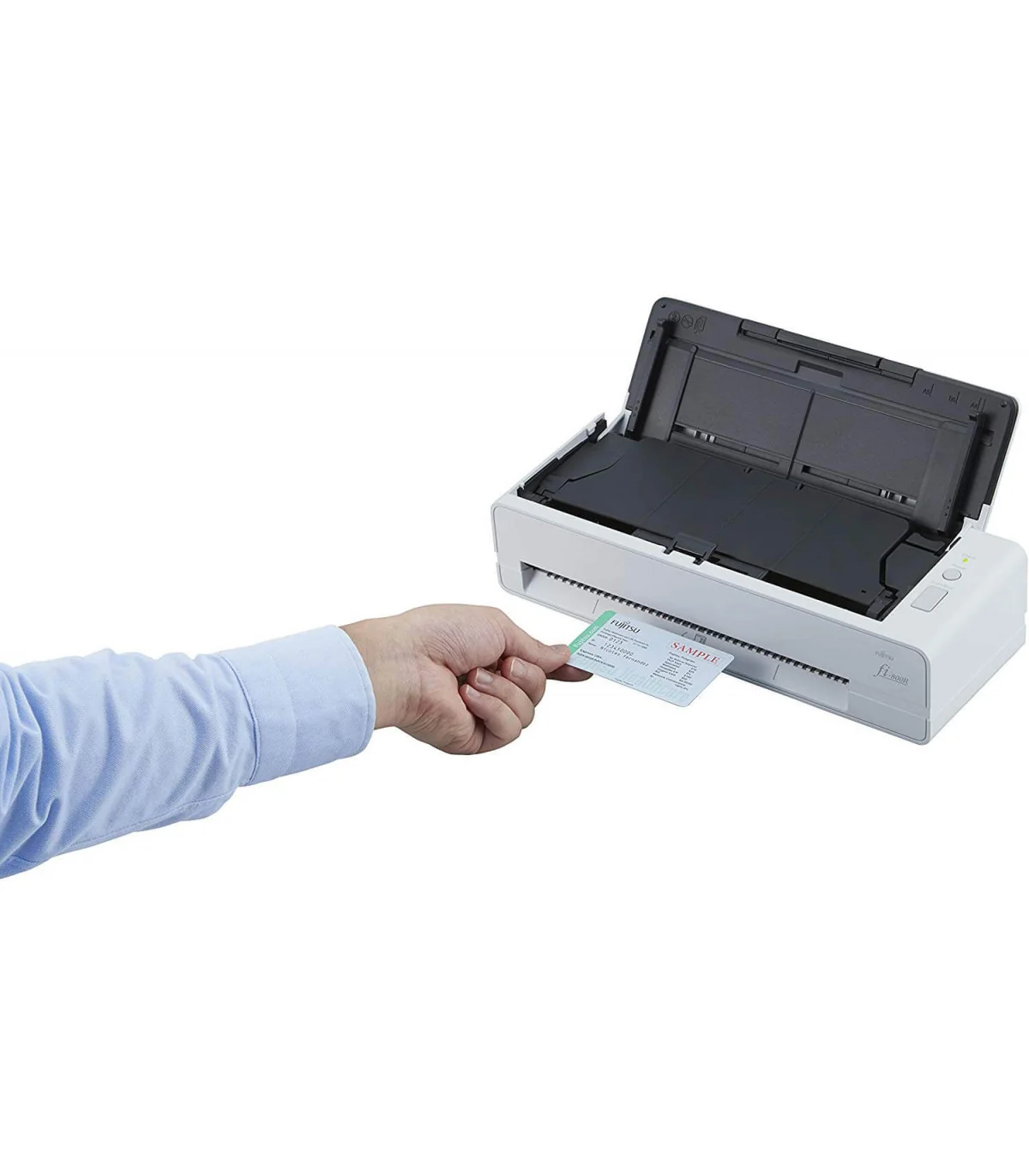

- Máy scan đa chức năng: scan hộ chiếu, scan CMND, scan bằng lái xe, scan tài liệu A4, A3
- Ứng dụng scan tại quầy giao dịch ngân hàng, bệnh viện, …
- Kiểu máy: máy để bàn nạp giấy tự động
- Khổ giấy: tối đa 215.9 x 355.6 mm (8.5 x 14 in.)/ tối thiểu 50.8 x 50.8 mm (2 x 2 in.) / giấy dài 5,588 mm (220 in.)
- Độ dầy/Trọng lượng giấy: giấy 27 to 413 g/m² (7.2 – 112 lb.), A8 size: 127 to 209 g/m² (34 – 56 lb.); thẻ dầy đến 1.4mm
- Tốc độ quét (ADF, Trắng đen/Thang xám, 200dpi/300dpi, Chiều thẳng, Giấy A4): 40ppm/80ipm
- Tốc độ quét (ADF, Màu, 200dpi/300dpi, Chiều thẳng, Giấy A4): 40ppm/80ipm
- Cảm biến hình ảnh: CIS
- Đèn chiếu sáng: đèn LED kép
- Độ phân giải quang học: 600dpi
- Khay nạp: 20 tờ (định lượng A4: 80 g/m² /20 lb.²)
- Cổng kết nối: USB 3.2 Gen1x1 / USB 2.0 / USB 1.1
- Bảo hành: 12 tháng
| Fujitsu FI-800R Specifications | |
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed, Duplex |
| Scanning Speed (1) (A4 Portrait) (Color (2)/Grayscale (2)/Monochrome (3)) |
ADF: Simplex: 40 ppm (200/300 dpi); Duplex: 80 ipm (200/300 dpi) Manual Feed: 3.5 seconds (200/300 dpi) |
| Image Sensor Type | CIS x 2 (front x 1, back x 1) |
| Light Source | RGB LED (front x 1, back x 1) |
| Optical Resolution | 600 dpi |
| Output Resolution (4) (Color / Grayscale / Monochrome) |
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver) (5) |
| Output Format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit |
| Background Colors | White |
| Document Size | Maximum: 215.9 x 355.6 mm (8.5 x 14 in.) Minimum: 50.8 x 50.8 mm (2 x 2 in.) Long Page Scanning (6): 5,588 mm (220 in.) |
| Paper Weight (Thickness) – ADF | Paper: 40 to 127 g/m² (11 to 34 lb) For A6 or smaller: 40 to 209 g/m² (11 to 56 lb) For A8 or smaller: 127 to 209 g/m² (34 to 56 lb) |
| Paper Weight (Thickness) – Manual Feed | Paper: 20 to 413 g/m² (5.4 to 110 lb) Plastic card: 1.4mm or less Booklet: 5mm or less |
| ADF Capacity (7) | 20 sheets (A4 80 g/m² or Letter 20 lb) 30 sheets (A4 52 g/m² or Letter 14 lb) |
| Expected Daily Volume (8) | 4,500 sheets |
| Multifeed Detection | Overlap detection (Ultrasonic sensor) |
| Interface | USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 |
| Power Requirements | AC 100 to 240 V ±10 % |
| Power Consumption | Operating Mode: 19 W or less Sleep Modem:1.7 W or less Auto Standby (Off) Mode:0.15 W or less |
| Operating Environment | Temperature: 5 to 35 °C (41 to 95 °F) Relative Humidity: 20 to 80% (Non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
| Dimensions (9) (W x D x H) | 296 x 105 x 83 mm (11.7 x 4.1 x 3.3 in.) |
| Weight | 2.0 kg (4.4 lb) |
| Supported Operating System | Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008 (10) |
| Included Software / Drivers | PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver (11), PaperStream Capture, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™ (12), Scanner Central Admin |
| Image Processing Functions | Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal |
| Included items | AC cable, AC adapter, USB cable, Setup DVD-ROM |
1. Actual scanning speeds are affected by data transmission and software processing times.
2. Indicated speeds are from using JPEG compression.
3. Indicated speeds are from using TIFF CCITT Group 4 compression.
4. When scanning in high resolutions (500 dpi or above), scanning may be rejected depending on scanning mode, document size, memory size, and application program. Selectable maximum density may vary depending on the length of the scanned document.
5. Limitations may apply to the size of documents that can be scanned, depending on system environment, when scanning at high resolution (over 600 dpi).
6. Long page scanning is only available when using the ADF. Supports documents with lengths of up to 5,588 mm (220 in.) when resolutions are set to 200 dpi or less. For higher resolutions, supported document lengths vary.
7. Maximum capacity depends on paper weight and may vary.
8. Numbers are calculated using scanning speeds and typical hours of scanner use, and are not meant to guarantee daily volume or unit durability.
9. With the ADF paper chute closed.
10. Requires PaperStream IP 2.2.0 or earlier.
11. Functions equivalent to those offered by PaperStream IP may not be available with the WIA Driver.
12. Software can be downloaded from the website designated in the Setup DVD-ROM.
