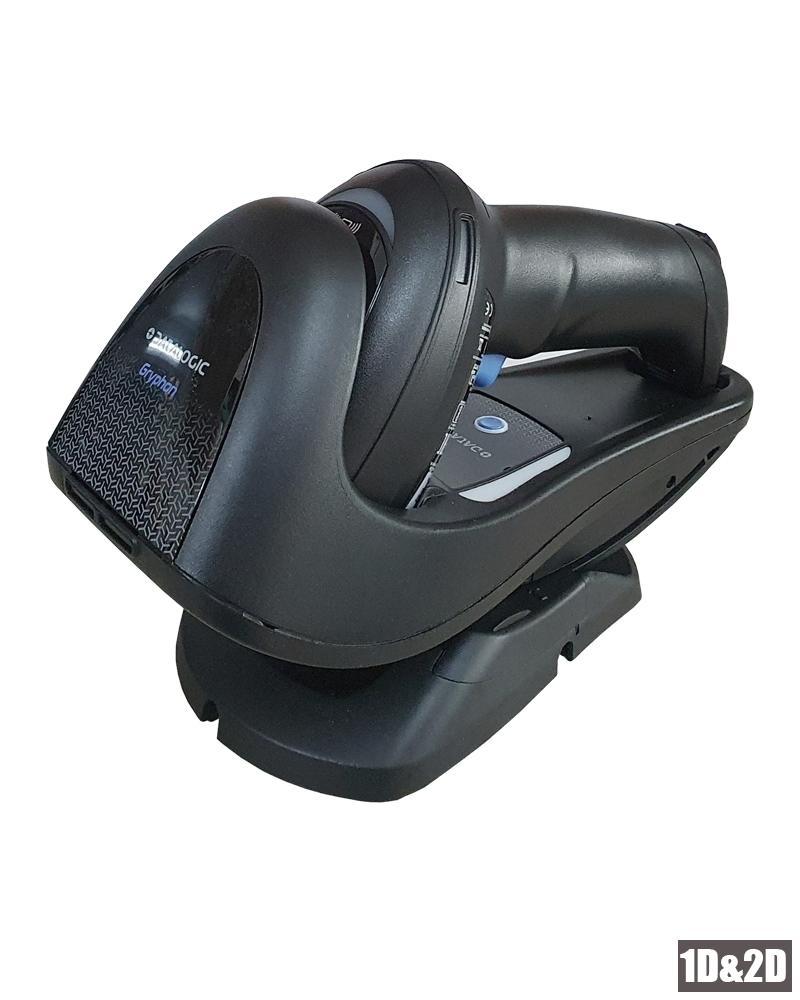

Máy quét mã vạch Datalogic Gryphon GBT4500

Mã sản phẩm: IVCTF

Liên hệ

Máy đọc mã vạch Datalogic Gryphon GBT4500 được thiết kế thanh lịch kiểu dáng tay cầm, giải mã barcode chuẩn 1D, 2D bằng công nghệ hình ảnh 1 Megapixel cho, hiệu suất đọc mạnh mẽ mã vạch trên màn hình điện thoại, mã vạch mờ nhoè và nhiều bề mặt vật liệu khác như giấy tem decal, bao bì. GBT4500 loại máy không dây kết nối bằng công nghệ Bluetooth trong phạm vi 100m với tần số 2.4GHz, sử dụng cho các ngành công nghiệp bán lẻ, sản xuất nhẹ, chăm sóc sức khỏe, vận chuyển, bưu chính, ngân hàng, hành chính công và tiện ích.
Sử dụng pin sạc Lithium-Ion 3250 mAh cho thời gian sử dụng cả ngày với hiệu suất cao.
Nhiều ưu đãi khi mua hàng
Giao hàng, lắp đặt tận nơi
Liên hệ ngay Samco Tech

Ưu đãi thêm:

Đặt mua sản phẩm tại Samco Tech ngay để nhận được các ưu đãi hấp dẫn nhất chưa từng có

  • Miễn phí giao hàng cho đơn hàng từ 1.000.000 VNĐ tới mọi tỉnh thành
  • Miễn phí ship nội thành trong bán kính 5km với đơn hàng từ 250.000 VN.

    Để lại thông tin để được chúng tôi tư vấn trong thời gian nhanh nhất

    🔎 Tìm trên Google “Tên sản phẩm + Samco Tech” để mua sản phẩm chính hãng nhanh nhất nhé!

    • CAM KẾT CỦA SAMCO TECH
    • 1 Cam kết chính hãng
      Hoàn tiền 200% nếu phát hiện hàng giả, hàng nhái.
    • 2 Cam kết tư vấn đúng
      Chuyên gia tư vấn trực tiếp qua hotline/zalo: 0969 88 71 73
    • 3 Cam kết bảo mật
      Tuyệt đối không chia sẻ thông tin khách hàng cho bên thứ 3.

    Radio Range (Open Air): 50.0 m / 164.0 ft

    Bluetooth® Wireless Technology

    Piconet: Max. Readers per Radio Receiver: 7

    Profiles: SPP (Serial Port Profile)

    Protocol: Bluetooth® 4.0 with BLE Certified Class 1,

    Class 2 and Class 3; Radio Frequency: 2.4 GHz

    Radio Range (Open Air): 100.0 m / 328.0 ft; Range

    distances are measured using the base station. Range with connection to other Bluetooth peripherals may show different results.

    Security: Data Encryption; Scanner Authentication

    DECODING CAPABILITY

    Autodiscriminates all standard 1D codes including

    1D / linear codes

    GS1 DataBar™ linear codes.

    Aztec Code; China Han Xin Code; Data Matrix;

    2D codes

    MaxiCode; Micro QR Code; QR Code; Dot code

    Australian Post; British Post; China Post; IMB; Japanese

    Postal codes Post; KIX Post; Planet Code; Postnet; Royal Mail Code

    (RM4SCC)

    EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;

    Stacked codes

    GS1 DataBar Stacked Omnidirectional; MacroPDF;

    MicroPDF417; PDF417; UPC A/E Composites

    Digital Watermarking Digimarc Barcodes

    ELECTRICAL

    Battery Type: Lithium-Ion: 3250 mAh

    Battery Charge Time: External Power: 4 Hours @ 12 VDC;

    Reads per Charge: 80,000

    Battery Charging (flashing orange); Charge

    Cradle Indicator LEDs

    Completed (steady green)

    Charging (Typical): < 6 W;

    Current Scanner only: 330 mA @ 3.7 V (Operative)

    Cradle only: 80 mA @ 5 V (Operative)

    Input voltage 4.5 – 14 VDC +/- 5%

    ENVIRONMENTAL

    Ambient light 0 – 100,000 lux

    Withstands repeated drops from 1.8 m / 6.0 ft onto a

    Drop resistance concrete surface.

    ESD Protection (Air Discharge) 16 kV Humidity (Non-Condensing) 0 – 95% Particulate and Water Sealing IP52

    Operating: 0 to 50 °C / 32 to 122 °F

    Temperature

    Storage/Transport: -40 to 70 °C / -40 to 158 °F

    INTERFACES

    Interfaces RS-232 / USB / Keyboard Wedge Multi-Interface

    PHYSICAL CHARACTERISTICS

    Colors Available Black; White

    Dimensions 16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in

    Weight 235 g / 8.29 oz

    ACCESSORIES

    Base Stations/Chargers

    WLC4090-BK-BT / WLC4090-WH-BT: Bluetooth® Base station; Wireless Charger; Multi-Interface (Black / White)

    WLC4090-BK-433 / WLC4090-WH-433: 433 MHz Base

    station; Wireless Charger; Multi-Interface (Black / White)

    WLC4090-BK-910 / WLC4090-WH-910: 910 MHz Base

    station; Wireless Charger; Multi-Interface (Black / White)

    READING PERFORMANCE

    Graphic Formats: BMP, JPEG, TIFF;

    Image Capture

    Greyscale: 256, 16, 2

    Image Sensor 1 Megapixel: 1280 x 800 pixels

    Aiming: Red Laser 650 nm

    Light source Illumination: Warm White; Hyper Red LED for

    Digimarc

    Motion tolerance 35 IPS

    Print contrast ratio (minimum) 15%

    Reading angle Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65°

    Beeper (adjustable tone); Vibration feedback option available for quiet places; Datalogic Three Green

    Reading indicators

    Lights (3GL) Good Read Feedback: Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs

    High Density (HD): 1D Linear: 0.077 mm / 3 mils;

    PDF417: 0.077 mm / 3 mils; Data Matrix: 0.102 mm / 4 mils

    Resolution (maximum)

    Standard Range (SR): 1D Linear: 0.102 mm / 4 mils;

    PDF417: 0.127 mm / 5 mils;

    Data Matrix: 0.195 mm / 7.5 mils

    READING RANGES

    Minimum distance determined by symbol length and

    Typical depth of field scan angle. Printing resolution, contrast, and ambient light dependent.

    GD4500 Standard Range (SR) GD4500 High Density (HD)

    Code 39: 5 mils: 7.0 to 38.0 cm / 2.7 to 14.9 in Code 39: 3 mils: 5.0 to 15.0 cm / 2.0 to 5.9 in

    Code 39: 10 mils: 2.2 to 58.0 cm / 0.8 to 22.8 in Code 39: 5 mils: 0.5 to 25.0 cm / 0.2 to 9.8 in

    Data Matrix: 10 mils: 5.5 to 27.0 cm / 2.2 to 10.6 in Data Matrix: 5 mils: 5.5 to 9.0 cm / 2.2 to 3.5 in

    Data Matrix: 15 mils: 2.8 to 41.0 cm / 1.1 to 16.1 in Data Matrix: 10 mils: 2.0 to 27.0 cm / 0.8 to 10.6 in

    EAN-13: 13 mils: 1.0 to 71.0 cm / 0.4 to 27.9 in EAN-13: 7.5 mils: 2.0 to 23.5 cm / 0.8 to 9.3 in

    PDF417: 10 mils: 2.5 to 41.0 cm / 1.0 to 16.1 in EAN-13: 13 mils: 1.0 to 40.0 cm / 0.4 to 15.7 in QR Code: 10 mils: 5.5 to 24.0 cm / 2.2 to 9.5 in PDF417: 4 mils: 3.0 to 12.0 cm / 1.2 to 4.7 in

    PDF417: 10 mils: 0.5 to 31.0 cm / 0.2 to 12.2 in

    QR Code: 10 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in

    SAFETY & REGULATORY

    The product meets necessary safety and regulatory approvals for its intended use.
