| Loại máy quét | Cầm tay có dây |
| Thương hiệu Scanner | Honeywell |
| Kết nối Scanner | USB |
Thông số kỹ thuật:
WIRELESS
Radio/Range: 2.4 GHz to 2.5 GHz (ISM Band) Adaptive Frequency Hopping;
Bluetooth v2.1: Class 1: 100 m (300 ft) line of sight
Data Rate (Transmission Rate): Up to 1 Mbps
Battery: 2400 mAh Li-Ion minimum
Number of Scans: Up to 50,000 scans per charge
Expected Hours of Operation: 14 hours
Expected Charge Time*: 4.5 hours
MECHANICAL/ELECTRICAL

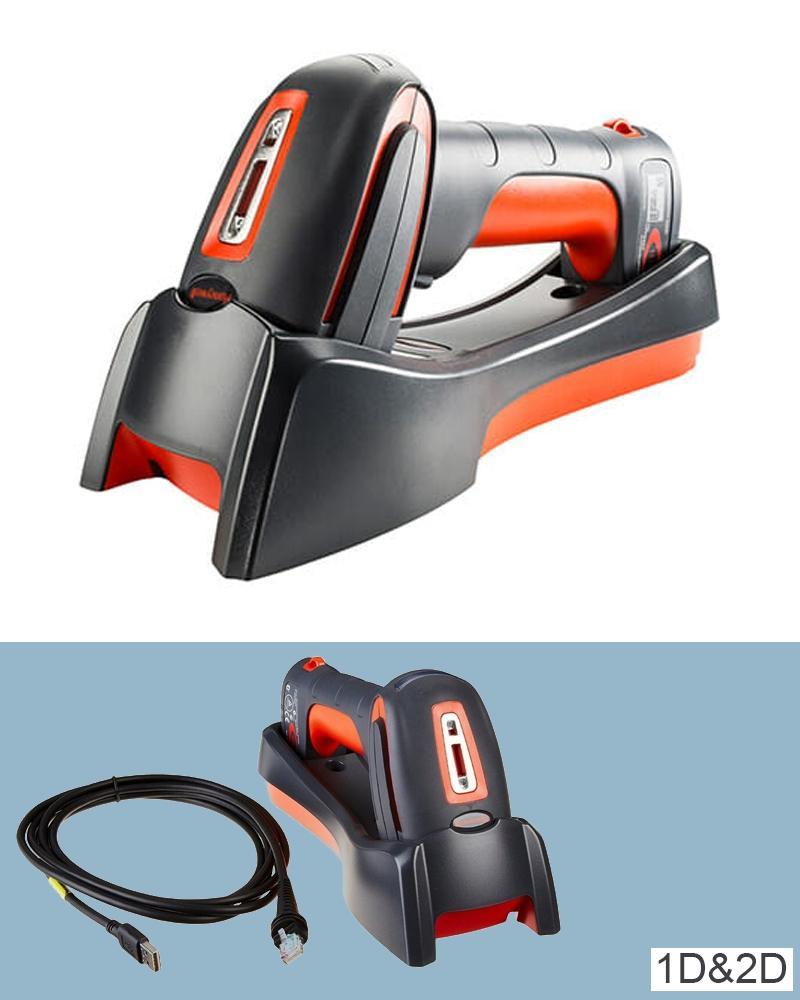

Dimensions (L x W x H): Scanner (1911iER-3): 133 mm x 75 mm x 195 mm (5.2 in x 2.9 in x 7.6 in)
Charger/Communication Base (COB02/CCB02- 100BT-07N): 250 mm x 103 mm x 65 mm (9.9 in x 4.1 in x 2.6 in)
Weight: Scanner: 390 g (13.8 oz)
Charger/Communication Base: 290 g (10.2 oz)
Operating Power (Charging):
Scanner: N/A Charger/Communication Base: 5 W (1A @ 5 V)
Non-Charging Power: Scanner: N/A Charger/Communication Base: 0.6 W (0.12A @ 5 V)
Host System Interfaces:
Scanner: N/A
Charger/Communication Base: USB, Keyboard Wedge, RS-232 TTL
ENVIRONMENTAL
Operating Temperature**: Scanner: -20°C to 50°C (-4°F to 122°F)
Charger/Communication Base: -20°C to 50°C (-4°F to 122°F)
Storage Temperature:
Scanner: -40°C to 70°C (-40°F to 158°F)
Charger/Communication Base: -40°C to 70°C (-40°F to 158°F)
Humidity: Scanner: Up to 95% relative humidity, non-condensing
Charger/Communication Base: Up to 95% relative humidity, non-condensing
Drop:
Scanner: Designed to withstand 50 2 m (6.5 ft) drops to concrete at -20°C (-4°F)
Charger/Communication Base: Designed to withstand 50 1.2 m (4 ft) drops to concrete at -20°C (-4°F)
Tumble:
Scanner: 5,000 1 m (3.3 ft) tumbles
Charger/Communication Base: 5,000 1 m (3.3 ft) tumbles
Environmental Sealing:
Scanner: IP65
Charger/Communication Base: IP51
Light Levels: Scanner: 0 to 100,000 lux (9,290 foot-candles)
Charger/Communication Base: N/A ESD: Scanner: ±20 kV air discharge, ±8 kV contact discharge
Charger/Communication Base: ±20 kV air discharge, ±8 kV contact discharge
SCAN PERFORMANCE Scan Pattern: Area Imager (838 x 640 pixel array)
Motion Tolerance: Up to 610 cm/s (240 in/s) at 16.5 cm (6.5 in) and 381 cm/s (150 in/s) at 25 cm (10 in) for 13 mil UPC
Scan Angle: ER Focus Horizontal: 31.6° Vertical: 24.4°
Symbol Contrast: 20% minimum reflectance difference
Pitch, Skew: 45°, 65°
Warranty: 3-year factory warranty (Note: Battery warranty is 1-year.)
* Battery charging only occurs between 5°C and 40°C (41°F to 104°F). ** With industrial-grade cable ordered separately.
